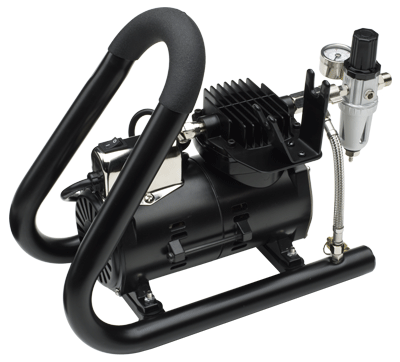

IWATA SMART JET Plus HandleTank Compressor

The Smart Jet compressor is perfect for the occasional and professional artist doing general airbrush applications.

Applications:

Iwata Studio Series compressors are powerful, compact and quiet. With oil-less piston motors, they are low maintenance and affordably priced. The Iwata Studio Series are the perfect companion to any airbrushes.

The Smart Jet Plus Handle Tank compressor, like its name suggests, has the additional feature of a 450cc air tank inside the handle. It is also more powerful, with almost twice the airflow of a Smart Jet Pro, so the Smart Jet Plus Handle Tank can run up to two Iwata airbrushes or similar airbrushes at the same time.

The Smart Jet features:

• Low maintenance, oil-less single piston air compressor
• Quiet running 1/6 HP induction motor
• 450 cc air tank inside the handle
• Air flow at 0 psi: 0.81 CFM (23 lpm)
• Working pressure from 0 psi to 60 psi
• Smart Technology automatic switching reduces running time and motor wear (40 psi on / 60 psi off)
• Moisture filter
• Pressure gauge
• Air regulator for precise air pressure adjustment
• Comes with a 3 metre (10') braided hose
• One 1/4 BSP outlet
• Built in airbrush holder
• On/off switch
• Size: L 29 x W 17 x H 28 cm (approx including handle and fittings)
• Weight: 5.5 kg
• Voltage: 220-240V 50Hz
• Noise level: 54 decibels
• Duty cycle: 40 minutes continuous use. Please allow the motor to rest for at least 20 minutes after each cycle of continuous use.

• • Neo for Iwata CN, BCN, TRN1, TRN2
  • Iwata Revolution BR, CR, SAR, BCR, TR1, TR2, M1, M2
  • Iwata Eclipse CS, BS, SBS, BCS, SA (except G series)
  • Iwata HP
  • Iwata HP-Plus
  • Iwata Hi-Line
  • Iwata Hi-Line HP-TH (will only run one)
  • Iwata Custom Micron
  • Iwata Kustom series (or one HP-TH)
  • Paasche CC
  • Paasche F
  • Paasche Talon
  • Paasche V
  • Paasche VJR
  • Paasche VSR90
  • Paasche VV
  • Badger 100
  • Badger 150 (except with HD head)
  • Premi Air G35
  • Sparmax SP35, SP35C, MAX-3, MAX-4, HB-040, SP-20X, DH-125
  • Sparmax GP-35, GP-50

• The Smart Jet Plus Handle-Tank is suitable for running one of the following airbrushes, small spray guns or similar:

  • Iwata Eclipse G3
  • Iwata Eclipse G5
  • Iwata Eclipse G6 (not fan pattern)
  • Iwata Hi-Line HP-TH
  • Paasche H
  • Paasche HS
  • Paasche VL
  • Paasche VLS
  • Paasche MIL-SET
  • Paasche AEC
  • Paasche 200T (at low pressure for tanning)
  • Badger 150 HD
  • Badger 155
  • Badger 175
  • Badger 200
  • Badger 250
  • Badger 260
  • Badger 350
  • Sparmax GP-850
  • Flake King 500
